World Cup-Level Downhill Performance
Built for the fastest lines, biggest hits, and most demanding terrain, the FOX 40 Factory GRIP X2 represents the pinnacle of FOX downhill suspension. Proven at the highest levels of World Cup racing, the 40 combines an incredibly stiff dual-crown chassis with 203mm of travel, the highly tunable GRIP X2 damper, and FOX’s FLOAT EVOL GlideCore air spring.
Whether you’re chasing race seconds or building the ultimate bike-park machine, the FOX 40 is designed to deliver maximum control, traction, and confidence when the terrain gets rough.
GRIP X2 Damper
FOX’s descent-focused GRIP X2 damper provides exceptional control at speed with four-way external adjustability. Independent high- and low-speed compression and rebound adjustments allow riders to precisely tune suspension behavior for terrain, riding style, and personal preference.
The damper is designed to provide excellent small-bump sensitivity while maintaining the support needed for hard braking, steep terrain, large impacts, and aggressive cornering.
FLOAT EVOL GlideCore Air Spring
The latest FOX 40 incorporates the FLOAT EVOL GlideCore air spring, designed to reduce friction and binding as the fork flexes under real-world riding loads.
By allowing the air spring assembly to move with the fork under dynamic load, GlideCore helps maintain smooth suspension action and consistent traction through rough, high-speed terrain.
Built to Hold the Line
The FOX 40’s massive 40mm stanchions and dual-crown chassis provide the stiffness and steering precision required for downhill racing and aggressive bike-park riding.
A floating 20x110mm thru-axle helps maintain proper chassis alignment to reduce unwanted friction, while lower-leg air bleeders allow pressure to be quickly equalized as conditions and elevation change.
Factory Series
As FOX’s premium suspension offering, the 40 Factory features Genuine Kashima Coat stanchions for FOX’s signature Factory appearance and exceptionally smooth suspension performance.
Highlights
- 203mm travel
- FOX GRIP X2 damper
- Four-way compression and rebound adjustment
- High-speed compression adjustment
- Low-speed compression adjustment
- High-speed rebound adjustment
- Low-speed rebound adjustment
- FLOAT EVOL GlideCore air spring
- 40mm Kashima-coated stanchions
- Dual-crown downhill chassis
- 20x110mm floating thru-axle
- Lower-leg pressure bleeders
- Internal bypass channels
- 200mm direct post-mount brake interface
- Compatible with rotors up to 230mm
- FOX direct-mount mudguard compatible
- Available for 29” and 27.5” wheels

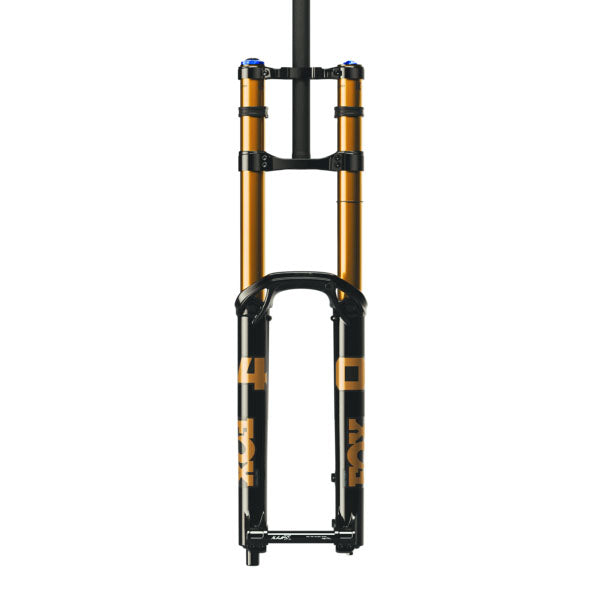

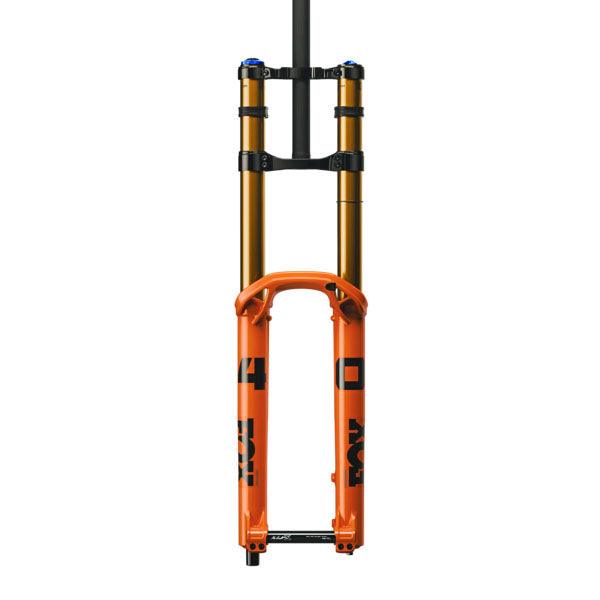

- Shiny Black and Shiny Orange color options
Who Is It For?
The FOX 40 Factory GRIP X2 is for riders who demand maximum suspension performance from a downhill bike. From World Cup racing and local DH events to full days hammering bike-park laps, the 40 is built for riders who prioritize traction, control, adjustability, and confidence at speed.
When the trail gets steeper, rougher, and faster, the FOX 40 is built to keep you composed and in control.
